Peluso P-12 Vacuum Tube Microphone

Peluso P-12 Vacuum Tube Microphone

1,499.00

The P-12 is paired with the Peluso MX-56 power supply. The dual sided capsule in the P-12 enables the power supply to feature 9 polar patterns in an array from omni-directional to cardioid to figure eight.

The P-12 features our heavy-duty 8-pin screw on cable connector. The large diameter pins in the screw on connector give a tight and secure cable connection designed to perform for a lifetime of use.

Acoustically matched pairs available upon special request.

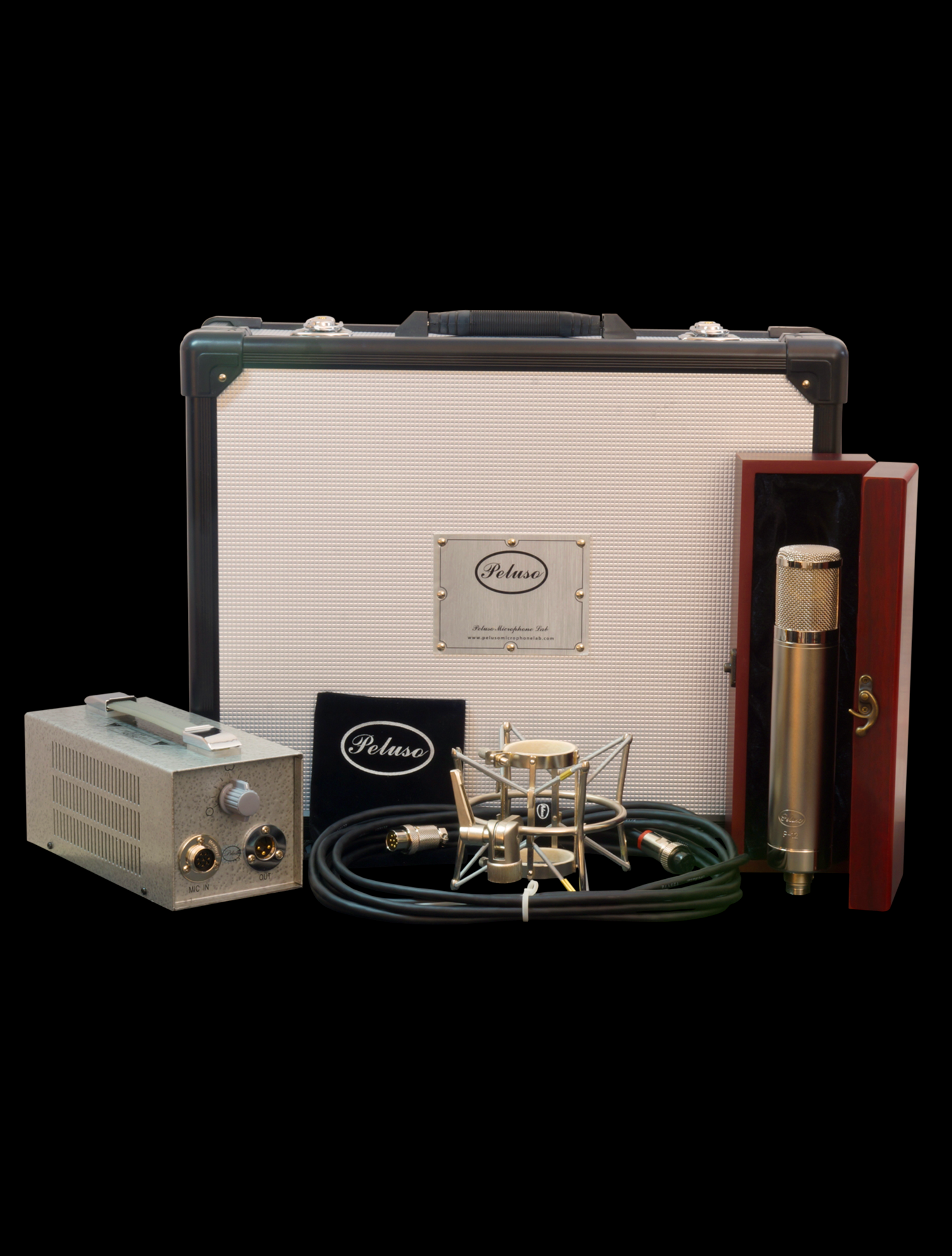

Microphone kit comes as a complete system including: P-12 Microphone in a Wood Box, MX-56 Power Supply, New-style 8-Pin Screw on Cable Assembly, and a Shock Mount all packed in a Flight Case.

All Peluso Microphones are covered by a Three Year Limited Warranty.

Add To Cart

The Peluso P-12 Tube Microphone is styled after AKG's legendary "C 12". Produced from 1953 to 1963, the C 12 is considered one of history's finest microphones. It was one of the first condenser microphones to provide remote switching between nine polar patterns. The dual blackplate of the 34mm edge-terminated CK12 (CEK12) capsule enabled this advancement. The heart of its amplifier stage is the warm and quiet 6072A glass triode vacuum tube. The amplifier circuitry and output transformer of our P-12 have been designed to match the vintage C 12. Carefully selected components, thorough testing, and attention to detail all come together in this beautiful full-bodied classic tube microphone. The P-12 faithfully reproduces the clarity, openness, and top-end air that made the C 12 one of the world's finest vocal microphones!

Technical Data
Capsule Type: Condenser Pressure Gradient w/ 34mm edge-terminated capsule
Frequency Range: 20Hz/24Khz
Polar Pattern: 9 - Switchable from omni- to bi-directional
Sensitivity: 11 mv/pa
Impedance: 200 ohms
SPL: 138 dB
Equivalent Noise: 15 dB(A)
Tube Type: 6072A-M
Power Requirements: Dedicated Power Supply, 115V or 230V AC
Size: 45mm x 240 mm
Weight: 750 g
